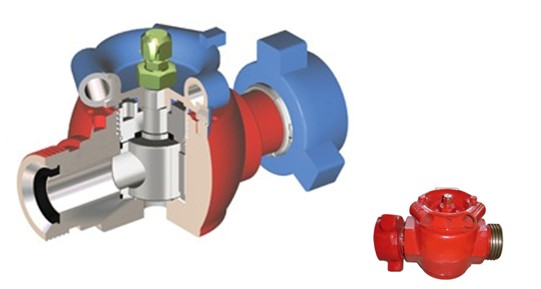

Plug valve is a necessary part that is applied to high pressure manifold in well cementing and fracture service, also selected for HP fluid control system. It is excellent for its compact structure, easy maintenance, low torque, and rapid operation.The outlets of plug valve are FIG 1502 union connections (other connections on request), cylinder fits between body and wear bush, and seal rings are inlaid into outer of wear bush for good seal performance.
Main technical parameters
Working Pressure: 2,000 ~ 15,000psi
Nominal Bore Diameter: 2” and 3”
Temperature Class: K ~ V
Specification Level: PSL 1 ~ 4
Performance Requirement: PR 1 ~ 2
Material Class: AA ~ EE
Working Medium: crude oil and natural gas
