FC Type Gate Valves

FC type Gate Valves

Integrated FC Style gate valves combine a forged body and the proven slab-gate and floating seat design used throughout the industry. The slab-gate design provides a metal-to-metal seal on the flow stream and the bolted bonnet provides for ease of maintenance and repair.

Features:

l Forged Body

l Full-bore

l Non-rising stem

l Floating seats

l Self energized stem packing

l Metal to metal backseat capability

l Bolted bonnet

l Easy Maintenance

l Standard trims available, including sour gas applications

l API6A certified

l Available in flanged and threaded end connections

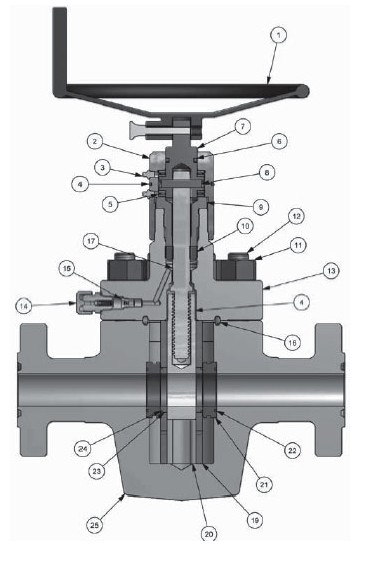

Item

Description

Qty

1

Handwheel Assembly

1

2

Bearing Cap

1

3

Grease Fitting

2

4

O-Ring

1

5

Bearing Assy

2

6

O-Ring

1

7

Steam Adapter

1

8

Steam Shear Pin

1

9

Packing Gland

1

10

Stem Packing

1

11

Nut

8

12

Pad Stud

8

13

Bonnet Body

1

14

injection Fitting

1

15

Check Valve

1

16

Bonnet Body

1

17

Steam

1

18

Gate

1

19

Retainer Plate

2

20

Gate Guide

2

21

Seat

1

22

Seat Gasket

2

23

Seat Ring

2

24

Seat Ring Gasket

2

25

Body

1

26

Nameplate (not shown)

1
